About this vehicle
Features
Description

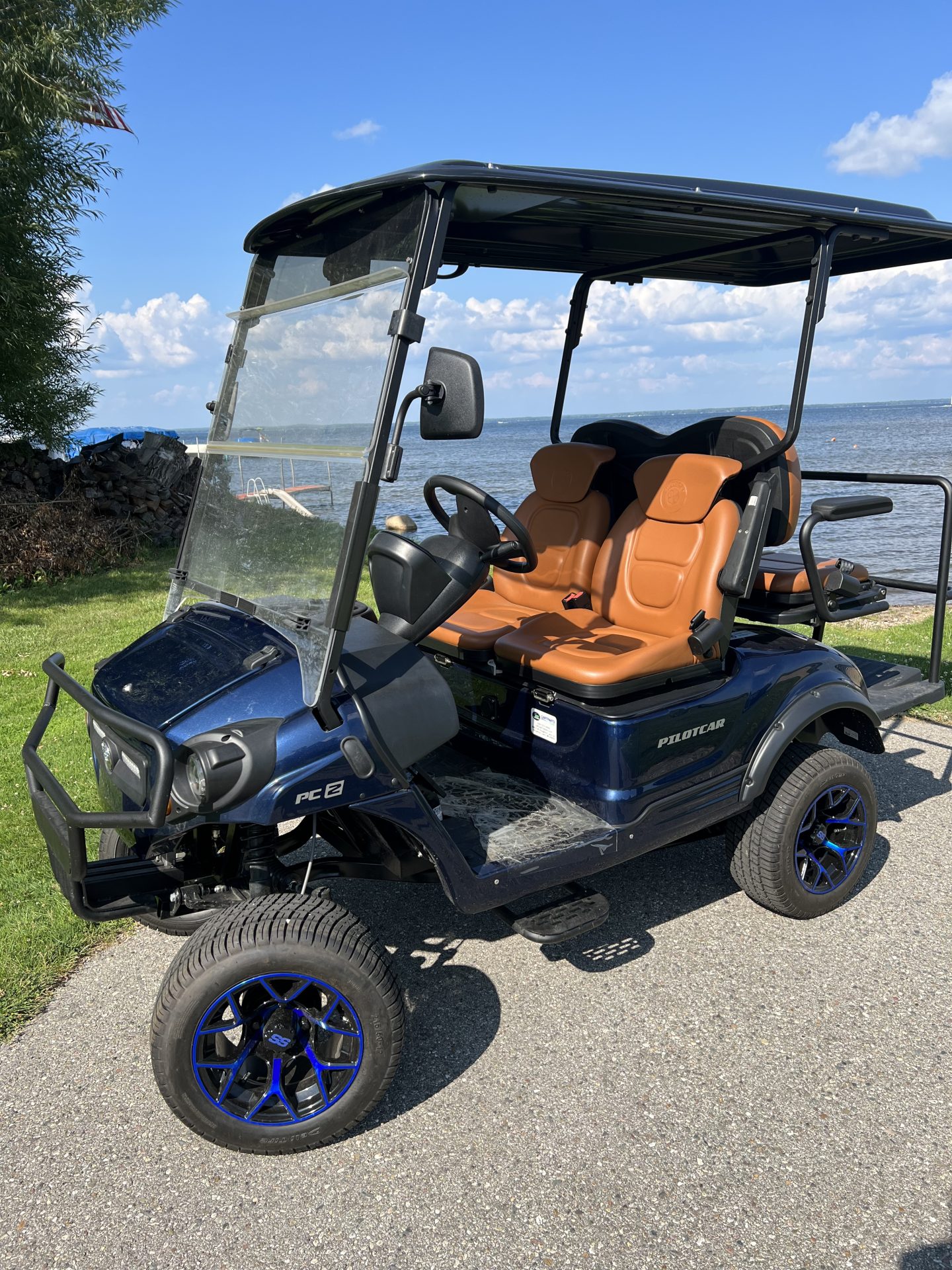

PC-2 Electric Vehicle
Serial Nr. ESWHBNUPE06KW2202YBC10V102859
VIN:NRY226A15NB002859
6 kW (8,16 hp) AC
4-WHEEL HYDRAULIC
TR Lithium Set up (Cables/ Gauge)
3x TR GC2-48-G (Lithium)-102 Ah
MIDNIGHT BLUE
Black Extended Suntop (Only applied w/ rear foldable seat)
Polycarbon foldable windshield DOT
Side & Rear View Mirrors

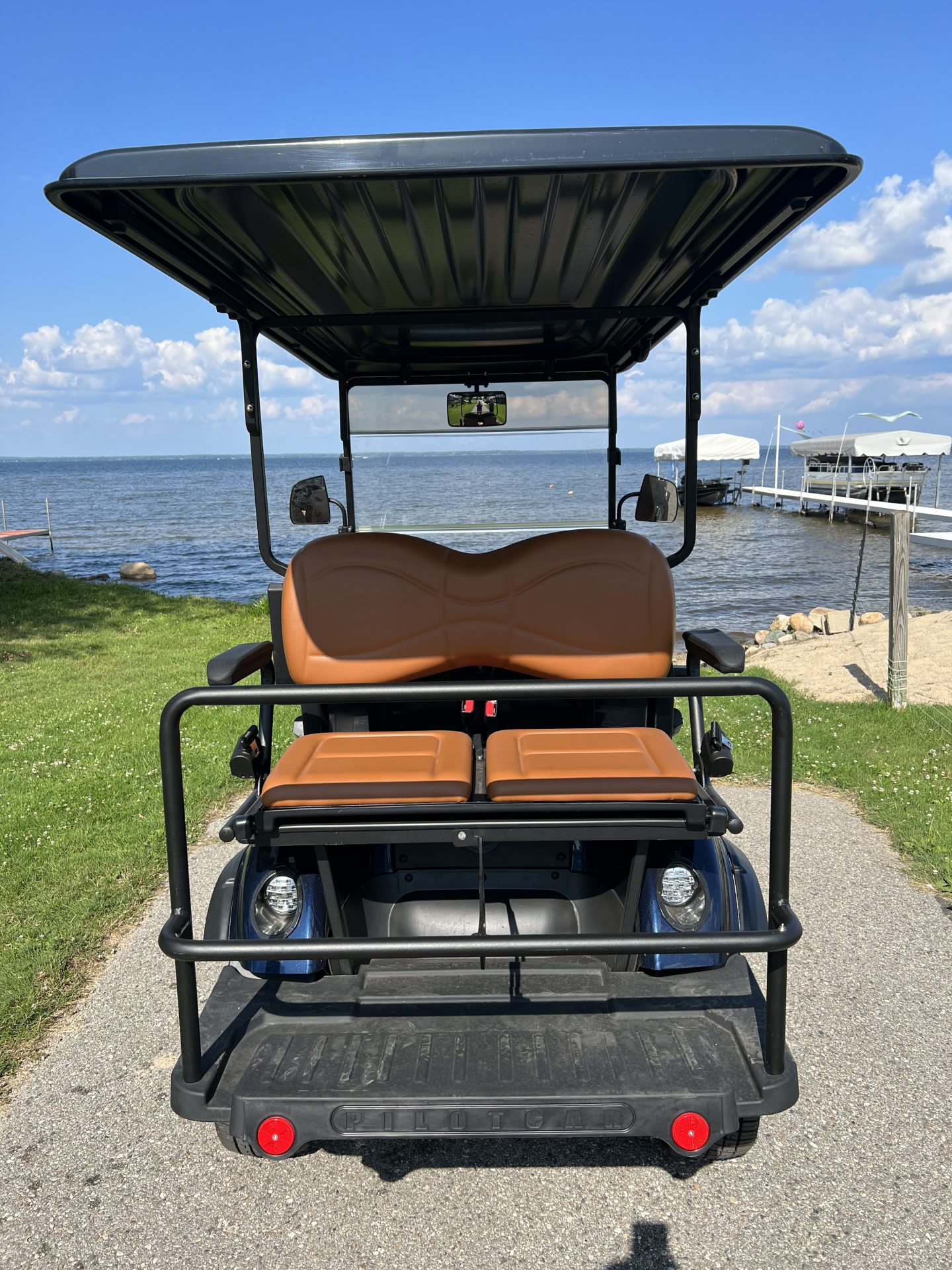

Foldable rear seat for extra 2-passengers
Sport Steering Wheel
Facelift Front Body

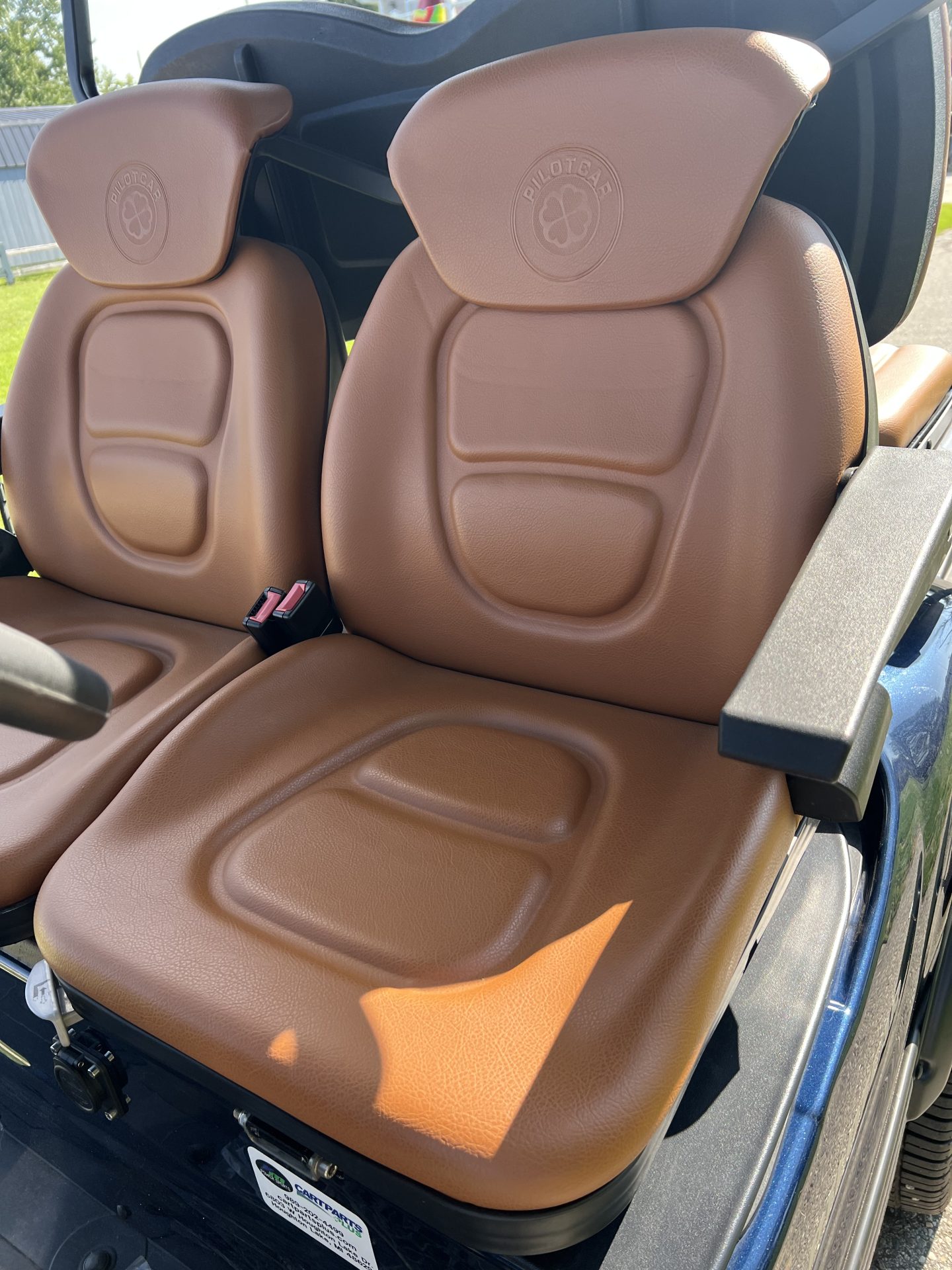

Premium Seat (w/ 2-point seatbelt) Tobacco Colored
Halogen driving lights, w/ LED DRL (Daytime Running
Lights) (Only applied w/ facelift front body)
LED BULBS
Charging unit
Digital Vehicle-Info Screen (Only applied w/ lighting system)
USB-12 V outlet
Lift kit (3″)

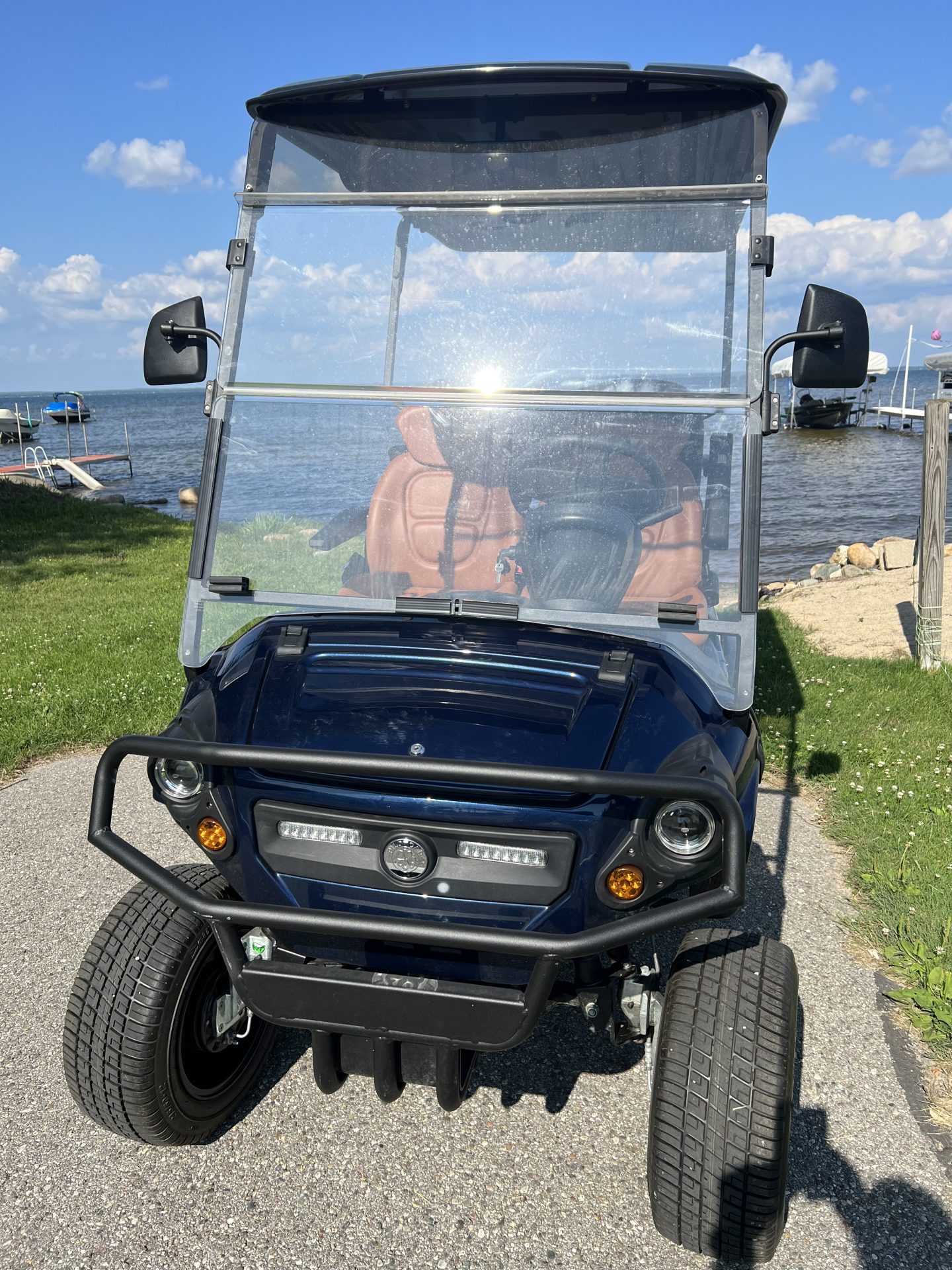

Front brush guard

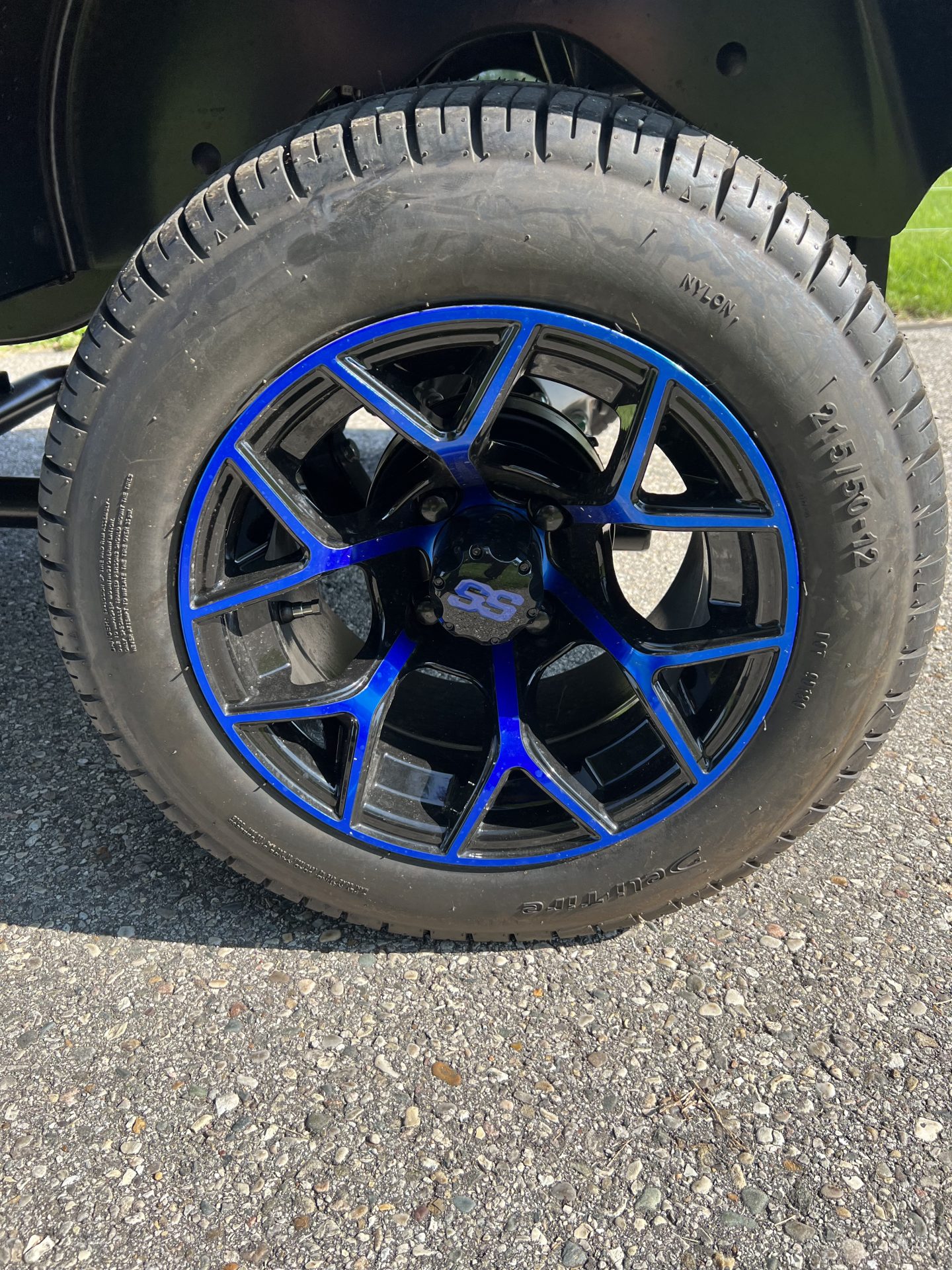

Ninja (Black, Red, White, or Blue) 215/50-12 Deli
(STREET 12″)
POWER
ELECTRIC-48 V (AC)
Motor Power
AC 6 kW (8.20 hp) Rated 12.46 kW (16.95 hp) Peak
Battery
Lithium Battery Package (3-pack)
Charge Unit
Lithium Battery Package
OVARTECH 3.3 kW Onboard
Charge Unit
85-265 VAC@16A 40A/48V
Motor Control Unit
AC
SEVCON (450 A)
STEERING & SUSPENSION SYSTEM
Steering Self-compensating double reduction helical rack-and-pinion
Suspension Front Fully independent McPherson style strut suspension
Suspension Rear Semi independent, swing arm with coil springs over hydraulic shock absorbers
BRAKE SYSTEM
Service Brake
4-wheel hydraulic drum brake system
Parking Brake
Elektromagnetic parking brake
BODY
Body Naturally colored Thermoplastic ABS White, Midnight Blue, Red
Chassis Automotive style steel frame with high corrosion resistance Sanding /E-coating/ Static Wet Paint
PERFORMANCE
Max. Forward Speed 15 mph – 25 mph (24 kph – 40 kph)*
Max. Reverse Speed 5 mph (8 kph)
Range
Lithium Battery Package
55.5 mi (90 km) **
Max. Gradeability25%
Charge Time
Lithium Battery Package
80% – 4 hrs
100% – 6 hrs
Turning Radius 9.8 ft (3 m)
GENERAL
Curb Weight
Lithium Battery Package 886 lb (402 kg) *
Passenger Capacity 11 Passenger 13 Passenger
Load Capacity 881 lb (400 kg)
Tow Capacity 1102 lb (500 kg)
DIMENSIONS
Standart Vehicle w/o Options
Length 94.2 in (2395 mm)
Width 47.8 in (1215 mm)
Height 77.3 in (1965 mm) *
47.2 in (1200 mm) **
Wheelbase 64.5 in (1640 mm)
Ground Clearance 4.3 in (110 mm)
WARRANTY
Warranty
2 years full warranty (Less wearable items)
5 years limited warranty (Motor and motor control unit)
