About this vehicle
Description

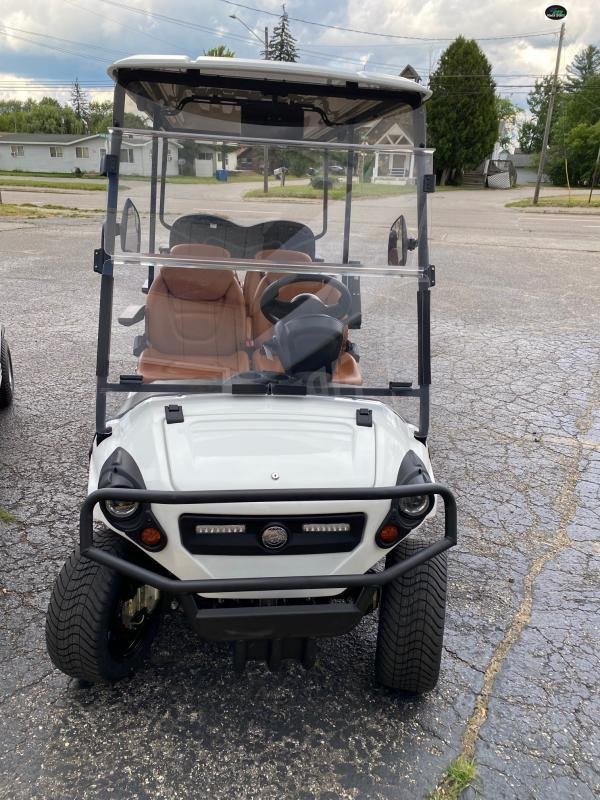

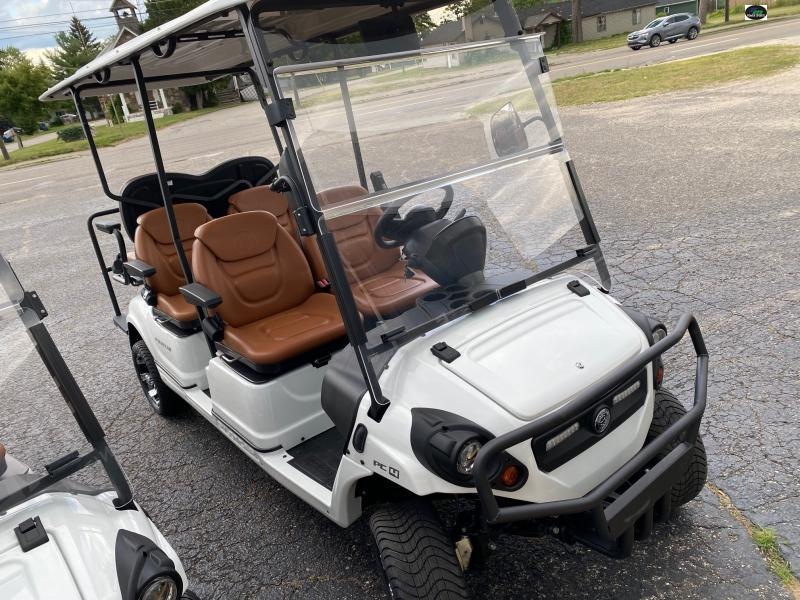

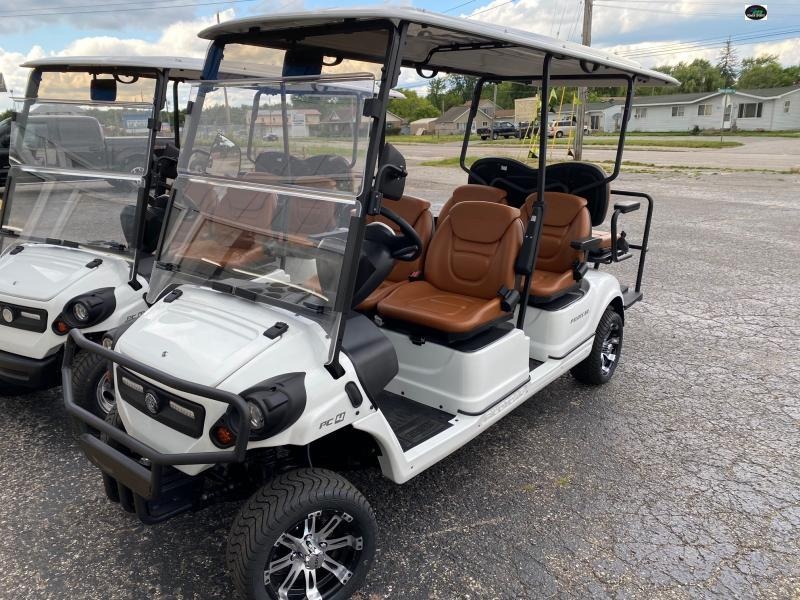

PC-42 MODEL ELECTRIC VEHICLE
Serial Nr: ESWHBNUPE10KW2201YBC01V102661
VIN: NRY421A11NB002661
10 kW (13,60 hp) AC
4-WHEEL HYDRAULIC
8x6V TROJAN T-125
SINGLE POINT WATERING SYSTEM
WHITE
Extended Suntop (Only applied w/ rear foldable seat)
Polycarbon foldable windshield DOT
Side & Rear View Mirrors

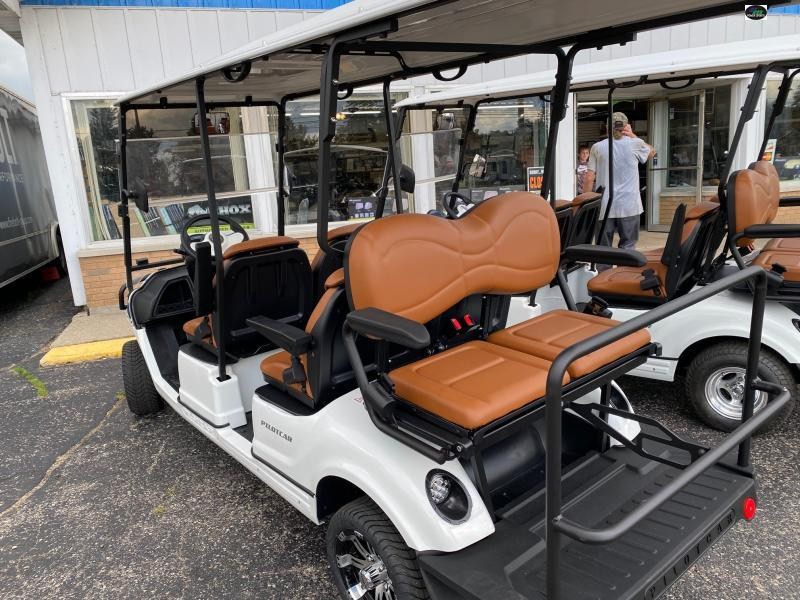

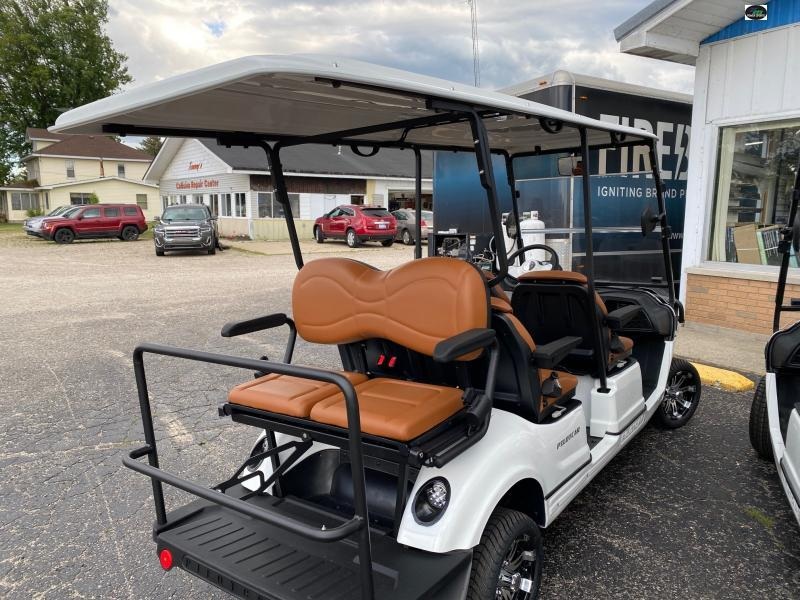

Foldable rear seat for extra 2-passengers
Sport Steering Wheel
Facelift Front Body
Premium Seat (w/ 2-point seatbelt) Carbon Black
Halogen driving lights, w/ LED DRL (Daytime Running
Lights) (Only applied w/ facelift front body)
LED BULBS
Charging unit
Digital Vehicle-Info Screen (Only applied w/ lighting
system)
USB-12 V outlet
Lift kit (3″)
Front brush guard
Customer will supply (TIR-345/ TIR-RX271)
POWER
ELECTRIC-48 V (AC)
Motor Power
AC 10 kW (13.60 hp) Rated 22.43 kW (30.50 hp) Peak
Battery
8X6V TROJAN T-125 (11.52 kWh) Lithium Battery Package
Charge Unit
Lead-Acid Battery Package
DELTA-Q QuiQ 1000 Onboard
Charge Unit
110-220 VAC@8 1A/48V
85-265 VAC@16A 40A/48V
Motor Control Unit
AC
CURTIS (350 A-600 A)
STEERING & SUSPENSION SYSTEM
Steering Self-compensating double reduction helical rack-and-pinion
Suspension Front Fully independent McPherson style strut suspension
Suspension Rear Semi independent, swing arm with coil springs over hydraulic shock absorbers
BRAKE SYSTEM
Service Brake
4-wheel hydraulic drum brake system
Parking Brake
Foot actuated multi-lock parking brake
Option: Elektromagnetic parking brake
BODY
Body Naturally colored Thermoplastic ABS White, Midnight Blue, Red
Chassis Automotive style steel frame with high corrosion resistance
Sanding /E-coating/ Static Wet Paint
PERFORMANCE
Max. Forward Speed 15 mph – 28 mph (24 kph – 45 kph)
Max. Reverse Speed 5 mph (8 kph)
Range Lead-Acid Battery Package 25 mi (80 km) **
Max. Gradeability 25%
Charge Time Lead-Acid Battery Package 80% – 4 hrs 100% – 6 hrs
Turning Radius 14.1 ft (4.3 m)
GENERAL
Curb Weight Lead-Acid Battery Package 1421 lb (645 kg) *
Passenger Capacity 13 Passenger 15 Passenger
Load Capacity 1323 lb (600 kg)
Tow Capacity 2205 lb (1000 kg)
Tyre Dimensions
DIMENSIONS
Standart Vehicle w/o Options
Length 127.5 in (3240 mm)
Width 47.8 in (1215 mm)
Height 75.7 in (1925 mm) *
47.2 in(1200 mm) **
Wheelbase 97.6 in (2480 mm)
Ground Clearance 4.3 in (110 mm)
WARRANTY
Warranty
2 years full warranty (Less wearable items)
5 years limited warranty (Motor and motor control unit)
