2027 ARIENS PROFESSIONAL 32, ST32DLE PRO
Request pricing and availability
Vehicle details
Included equipment
Overview
PC-22 Electric Vehicle
PC-2 Electric Vehicle
Serial Nr: ESWHJBNUPE06KW2208YBC08V073235
VIN: NRY226A15NB003235
6 kW (8,16 hp) AC
4-WHEEL HYDRAULIC
6x8V TROJAN T-875/ SINGLE POINT WATERING
SYSTEM
RED
Red Extended Suntop (Only applied w/ rear foldable seat)
Polycarbon foldable windshield DOT
Side & Rear View Mirrors
Foldable rear seat for extra 2-passengers

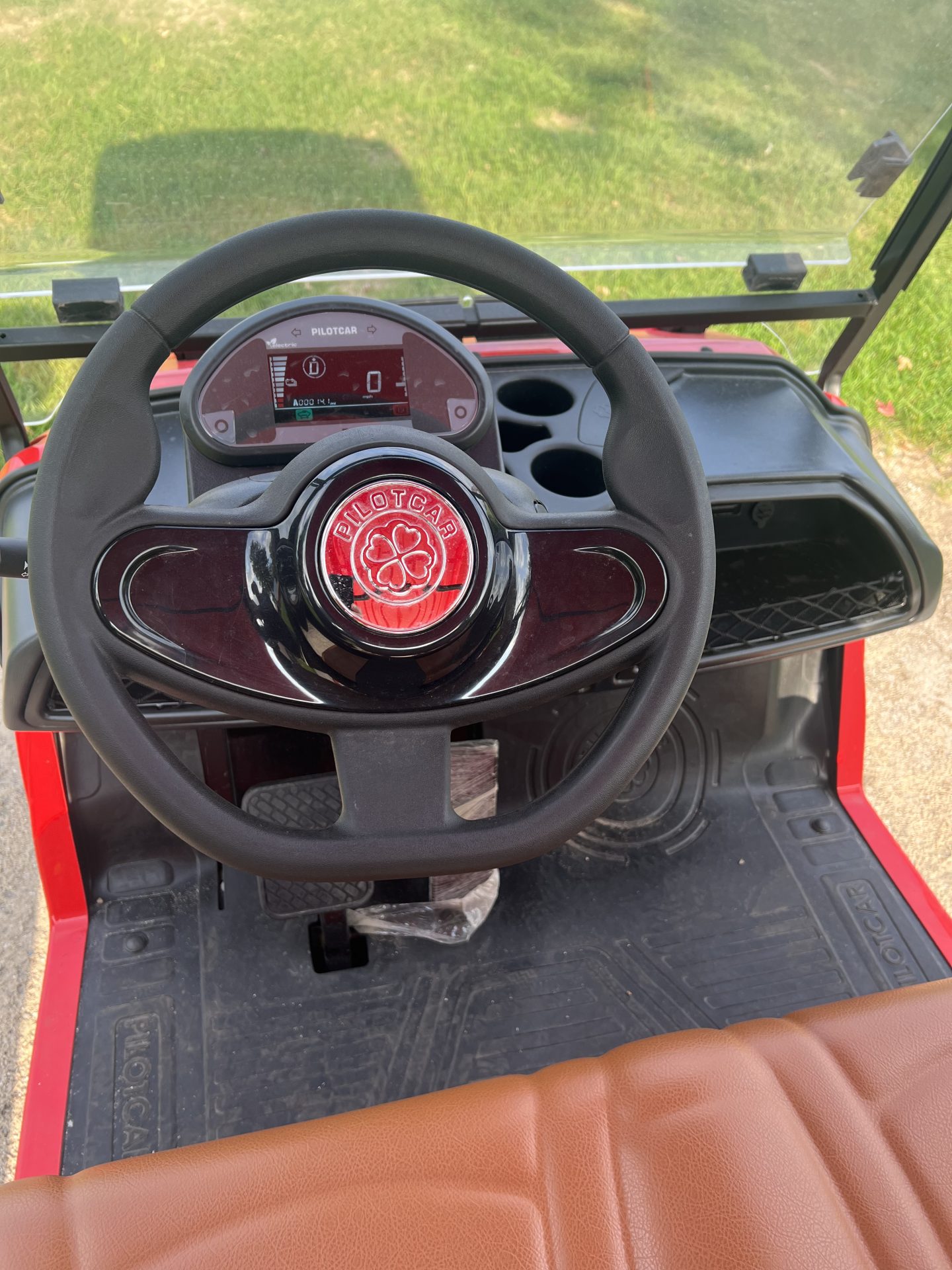

Sport Steering Wheel
Facelift Front Body
Golf Type Seat Tobacco Colored
2-point Seatbelt
Halogen driving lights, w/ LED DRL (Daytime Running
Lights) (Only applied w/ facelift front body)
LED BULBS
Charging unit
Digital Vehicle-Info Screen (Only applied w/ lighting system)
USB-12 V outlet

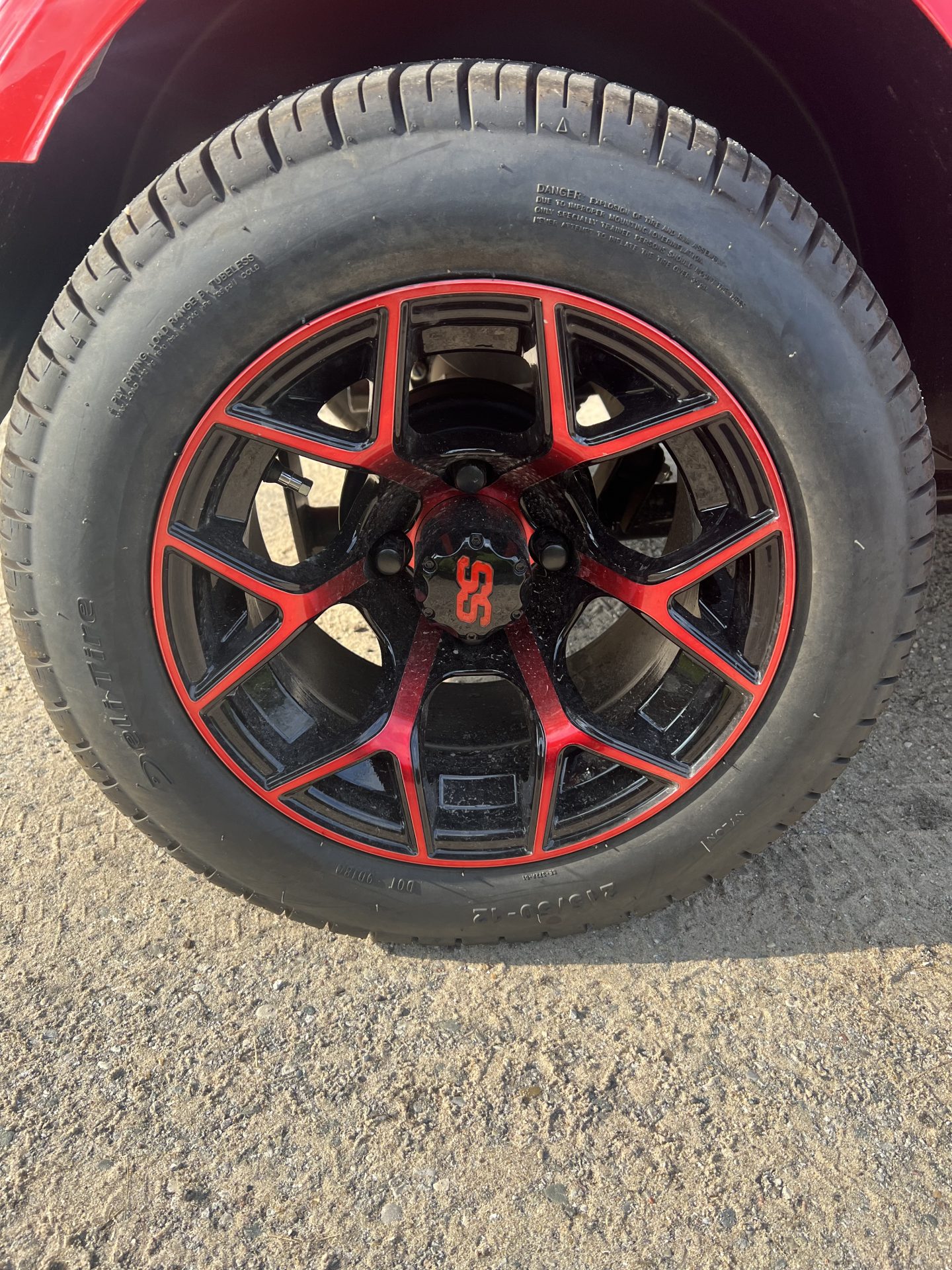

inja (Black, Red, White, or Blue) 215/50-12 Deli (STREET
12″)
POWER
ELECTRIC-48 V (AC)
Motor Power
AC 6 kW (8.20 hp) Rated 12.46 kW (16.95 hp) Peak
Battery
6X8V TROJAN T-875 (8.16 kWh)
Charge Unit
Lead-Acid Battery Package
DELTA-Q QuiQ 1000 Onboard
85-265 VAC@16A 40A/48V
Motor Control Unit
AC
CURTIS (350 A-450 A)
STEERING & SUSPENSION SYSTEM
Steering Self-compensating double reduction helical rack-and-pinion
Suspension Front Fully independent McPherson style strut suspension
Suspension Rear Semi independent, swing arm with coil springs over hydraulic shock absorbers
BRAKE SYSTEM
Service Brake
4-wheel hydraulic drum brake system
Parking Brake
Elektromagnetic parking brake
BODY
Body Naturally colored Thermoplastic ABS White, Midnight Blue, Red
Chassis Automotive style steel frame with high corrosion resistance Sanding /E-coating/ Static Wet Paint
PERFORMANCE
Max. Forward Speed 15 mph – 25 mph (24 kph – 40 kph)*
Max. Reverse Speed 5 mph (8 kph)
Range Lead-Acid Battery Package 25mi (60 km) **
Max. Gradeability25%
Charge Time Lead-Acid Battery Package 80% – 6 hrs 100% – 8 hrs
Turning Radius 9.8 ft (3 m)
GENERAL
Curb Weight Lead-Acid Battery Package 1036 lb (470 kg) *
Passenger Capacity 11 Passenger 13 Passenger
Load Capacity 881 lb (400 kg)
Tow Capacity 1102 lb (500 kg)
DIMENSIONS
Standart Vehicle w/o Options
Length 94.2 in (2395 mm)
Width 47.8 in (1215 mm)
Height 77.3 in (1965 mm) *
47.2 in (1200 mm) **
Wheelbase 64.5 in (1640 mm)
Ground Clearance 4.3 in (110 mm)
WARRANTY
Warranty
2 years full warranty (Less wearable items)
5 years limited warranty (Motor and motor control unit)
