About this vehicle
Description

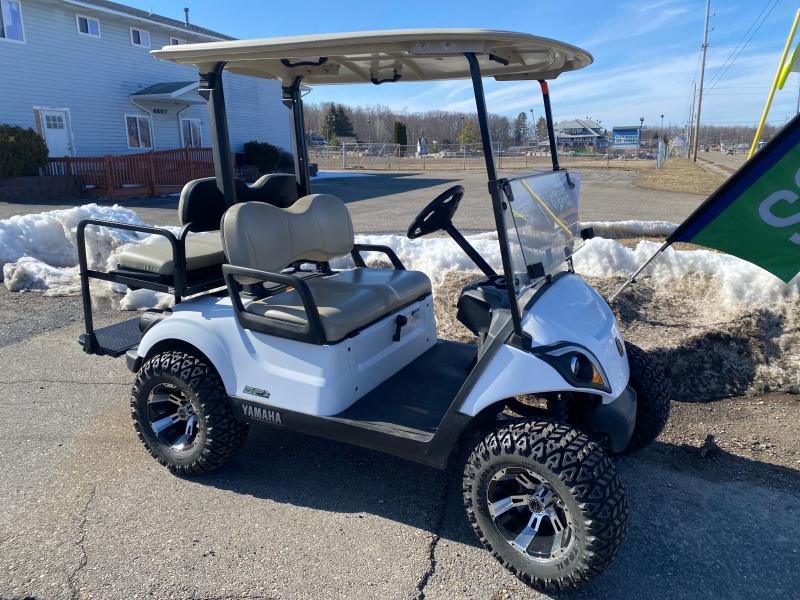

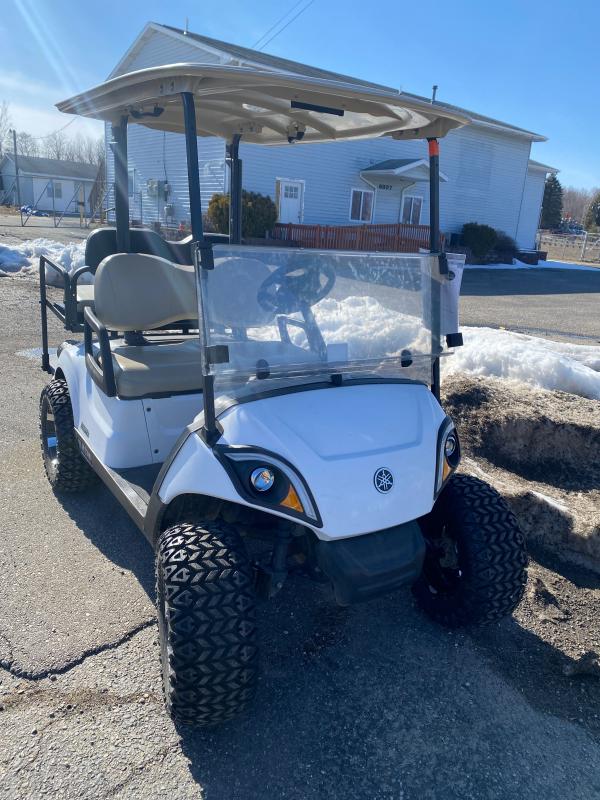

2019 Yamaha Drive2 Quietech EFI
Professionally serviced, inspected, and custom built
Installed:
LED Light Kit w/RGB LED Accent

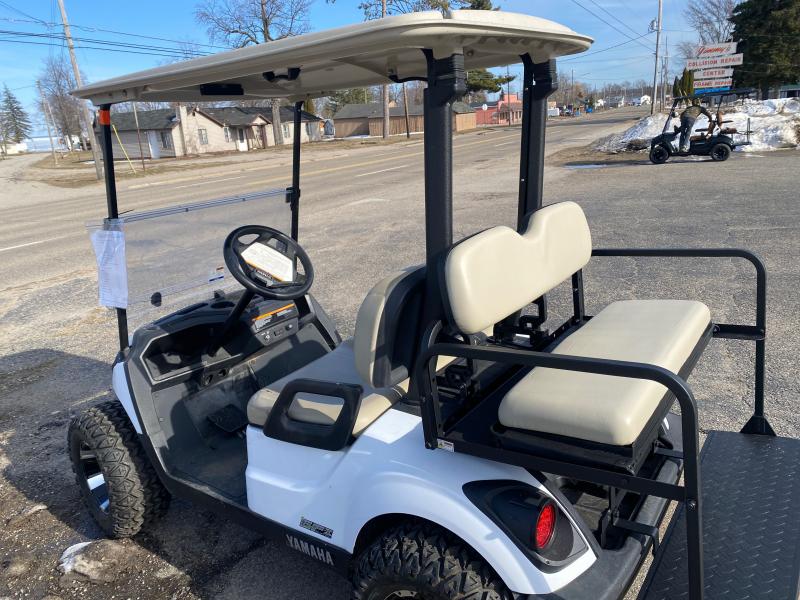

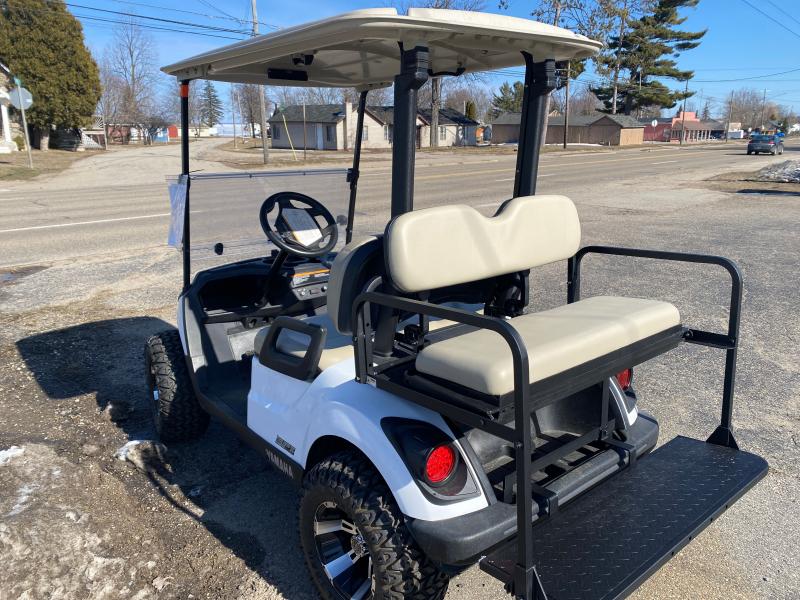

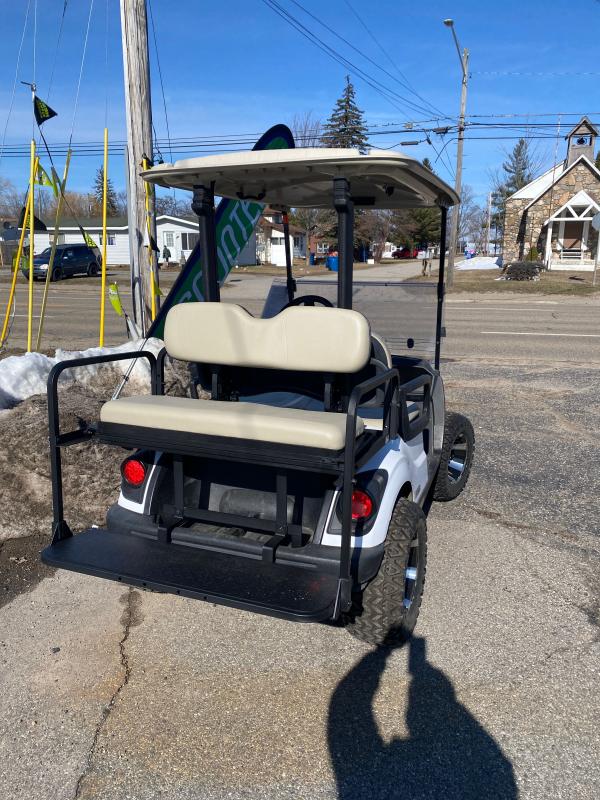

Rear Seat Kit
5-Panel Mirror
3″ Lift Kit
DoubleTake Machined Rims
265/50-12 Carlisle All-Trail Tires
Have several not built yet, so you can custom build one for you!
Build it the way you want it!!!
“Basic Build Special” -$1000 (Deluxe Light Kit, Rear Seat Kit, Mirror, Windshield)
Possible Options (installed price):
New Rear Seat kit $625
Ultra Rear Seat Kit $945
Lift Kit (3″) $495
New 22″ or 23″ Tires/ 12 or 14″ Rims (approx. $950)
Deluxe Light Kit (LED), (headlight, tail light) $400
Ultimate Light Kit (LED), (headlight, taillight, brake light, horn, turn signals, hazard) $550
New Windshield $200
Custom steering column and Steering wheel $300
Mirror 5-panel $65
Carbon fiber dash $150
Fender Flares $125
High speed gears $750
Speed Spring $90
Brush Gard- $350
Cup Holders on Rear Seat Kit $85
Yamaha-exclusive QuieTech technology
Independent Rear Suspension
Yamaha-built engine designed for golf cars
Industry-leading fuel economy with Accu-fuel delivery system
Drive2 QuieTech EFI boasts the lowest decibel output of any gas car and features the industry’s first-ever Independent Rear Suspension on a golf car. This unprecedented combination ensures you experience a luxuriously quiet ride. At 45 MPG and less hydrocarbon emissions, we think you’ll agree that choosing QuieTech EFI is the most sound decision you could make about a golf car.
Come See at 6803 W Houghton Lake Dr, Houghton Lake, MI 48629
Call: 989-202-4499

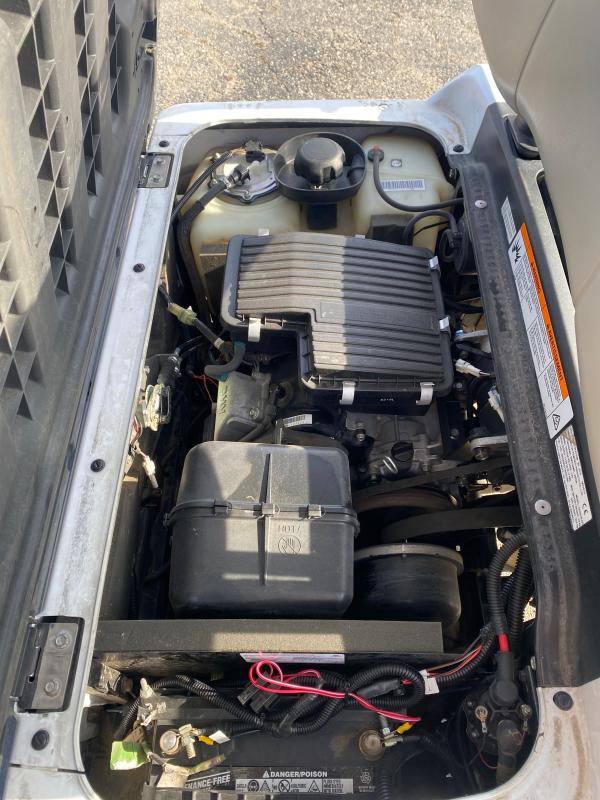

FUEL SYSTEM: EFI – Electronic Fuel Injection
ENGINE TYPE: Yamaha-built, 357 cc, low-emission single cylinder 60� incline OHV
LUBRICATION SYSTEM: Splash-style positive oil lubrication
OIL CAPACITY: 1 U.S. quart (1 liter, 1,000 cc)
AIR CLEANER: Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
COOLING SYSTEM: Forced Cooling
STARTING SYSTEM: Starter generator with pedal start system
DIMENSIONS
OVERALL LENGTH 93.6 in (238 cm)
OVERALL WIDTH 47.3 in (120 cm)
OVERALL HEIGHT (with sun top) 70.2 in (178 cm)
WHEELBASE 64.4 in (164 cm)
FRONT WHEEL TREAD 34.8 in (88 cm)
REAR WHEEL TREAD 38.3 in (97 cm)
MINIMUM GROUND CLEARANCE 4.3 in (110mm)
FLOORBOARD HEIGHT 12.9 in (33 cm)
CHASSIS
FRAME
HybriCore(tm) Chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat.
BODY
Mold-in Polypropylene color for White and Beige Color. Custom-formulated thermoplastic olefin painted with a two-part topcoat of high-luster automotive-grade polyurethane.
STEERING
Self-compensating double reduction helical rack-and-pinion.
FRONT WHEEL SUSPENSION
Tru-Trak II(tm) fully independent automotive-style strut suspension.
REAR WHEEL SUSPENSION
QuieTech EFI and PowerTech AC: Fully independent automotive-style strut suspension. Drive2 EFI and Drive2 AC: Swingarm with coil springs over hydraulic shock absorbers.
BRAKES
Self-adjusting mechanical, rear-wheel drum brakes.
BUMPERS
Front and rear 5 mph energy-absorbing bumpers.
PERFORMANCE
MAXIMUM FORWARD SPEED 15.0 mph (24 km/h)
MINIMUM TURNING RADIUS 9.2 ft (2.8 m)
GENERAL
DRY WEIGHT QuieTech EFI: 714.3 lb (324kg),
TIRE SIZE 18 x 8.5 – 8 (4-ply rating)
SEATING CAPACITY 2 persons
AVAILABLE SEAT COLOR Standard: Stone
AVAILABLE SUNTOP COLOR Standard: Stone
